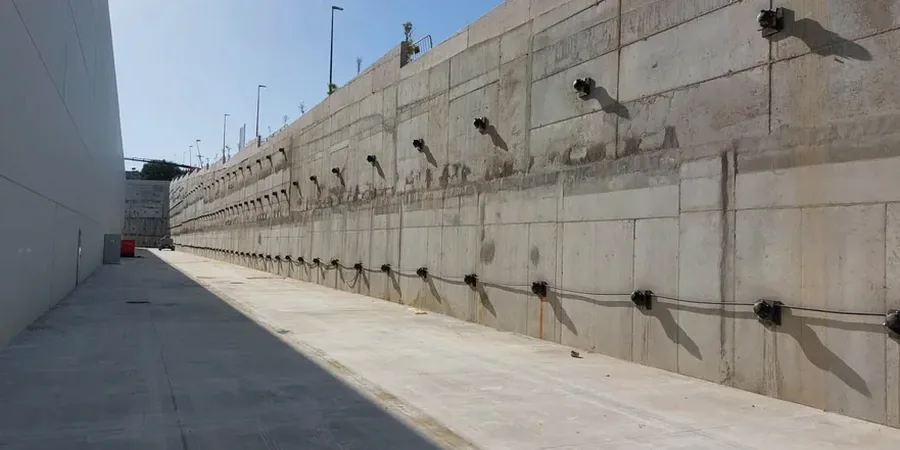

A common observation from geotechnical work across Wake County is how quickly subsurface conditions transition from stiff residual silt to partially weathered rock. This variability demands an anchoring solution that can be fine-tuned to the actual bond zone material rather than relying on generic installation tables. Our team approaches each anchor design by first reconciling the boring logs with the structural demand, whether it is a permanent tieback for a deep basement near Fayetteville Street or a temporary passive anchor stabilizing a cut slope along the I-540 corridor. We routinely combine data from an SPT drilling program with laboratory strength testing to define the grout-to-ground bond values, because assuming a uniform rock mass in the Raleigh gneiss and schist formations often leads to over-excavation or under-design. The result is a set of construction documents that reflect the actual stratigraphy encountered, reducing risk during installation and proof testing.
Bond stress in weathered Raleigh gneiss can vary by a factor of three within 10 vertical feet, so proof testing is not a formality—it is a verification requirement.
Process and scope
Site-specific factors
With Raleigh’s population surpassing 480,000 and infill construction pushing deeper excavations into the downtown core, the consequence of an underperforming anchor system is no longer limited to a single property. A tieback failure in a congested urban block can compromise adjacent roadways, buried utilities, and century-old brick foundations that sit on shallow spread footings. The residual soils here exhibit a brittle post-peak behavior once the bond fails, meaning there is very little visual warning before a sudden drop in anchor load capacity. Our design approach treats each anchor as part of a redundant system, specifying staggered unbonded lengths and varying inclination angles so that the wall or slope does not rely on uniform behavior across all anchors. This philosophy aligns with the load-path redundancy concepts embedded in ASCE 7 and is reinforced by lateral earth pressure distributions that account for the drained shear strength of Piedmont silts rather than idealized cohesionless or cohesive models.
Reference standards
IBC 2021 – Section 1810 (Anchors and Tiebacks), ASCE 7-22 – Minimum Design Loads for Buildings and Other Structures, PTI DC35.1-14 – Recommendations for Prestressed Rock and Soil Anchors, ASTM A615/A615M – Deformed and Plain Carbon-Steel Bars for Concrete Reinforcement, ASTM A722/A722M – High-Strength Steel Bars for Prestressed Concrete
Complementary services
Anchor Load Testing
Performance, proof, and extended creep tests executed with hydraulic center-hole jacks and digital load cells, following the PTI acceptance criteria for the specific ground conditions encountered in the Raleigh Belt.
Corrosion Protection Design
Sacrificial steel allowances, epoxy coating specifications, and double-corrugated sheathing details tailored to the acidic, moist residual soils typical of Wake County excavation sites.
Slope Stabilization with Passive Anchors
Design of fully grouted passive bars for stabilizing cuts in weathered rock, often integrated with shotcrete facing and drainage provisions to manage the perched groundwater common after heavy Piedmont rainstorms.
Tieback Wall Design Coordination
Collaborative development of soldier pile and lagging wall sections with the anchor inclination, spacing, and lock-off sequence optimized for the lateral earth pressure profile measured in Raleigh’s residual silts.
Typical parameters
Common questions
What is the typical cost range for anchor design and testing on a medium-sized retaining wall project in Raleigh?
For a project requiring ground investigation data synthesis, anchor design calculations, preparation of construction drawings, and on-site load testing for a modest tieback system, the combined professional and testing fees usually fall between US$1,020 and US$4,280. The total depends heavily on the number of anchors to be tested, the corrosion protection class required, and whether the bond zone is in residual soil or competent rock.
How do active and passive anchors behave differently in Piedmont residual soils?
An active anchor is tensioned against the structure after grouting, which immediately locks in a restraining force and minimizes soil movement. A passive anchor is grouted in place and only develops its resistive force as the soil mass begins to displace, making it suitable for temporary cuts where some deformation is acceptable. In Raleigh’s stiff silts, active anchors are generally preferred for permanent walls because the soil’s creep sensitivity can lead to progressive load loss if the anchor is not prestressed to a level above the working load.
What on-site tests are required to verify anchor capacity in Raleigh’s geology?
The IBC and PTI guidelines require proof testing on at least one production anchor per row, with the test load held for a minimum of 10 minutes to observe creep behavior. In the weathered gneiss and schist of the Raleigh Belt, extended creep tests lasting up to 60 minutes are often specified for critical permanent anchors, because the bond zone can include seams of softer saprolite that exhibit time-dependent deformation under sustained tension. More info.
